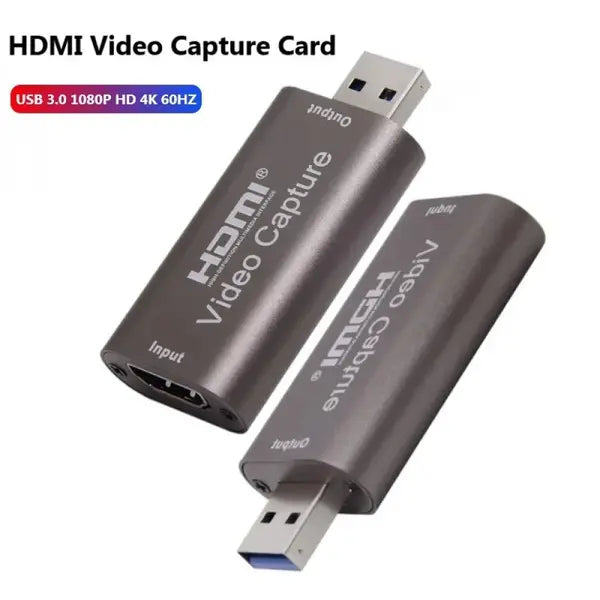

USB 3.0 Video Capture Card 4K 60HZ HDMI-compatible Video Grabber Live Streaming Box Recording for PS4 XBOX Phone Game DVD Camera

Connection and Operation 1. Connect the UHD signal source to the HDMI input of the video capture with HDMI cable. 2. Connect the computer to the usb port of the video capture with usb cable. 3. Operation steps for video capture(OBS): Open the software →Choose sources of “Video capture Device” →Set the size of image →Choose “Studio Mode”(double window) →Choose “Start Recording”. Specifications: HDMI resolution: Max input can be 3840×2160@30Hz Video output resolution: Max output can be 1920×1080@30Hz Video output format: YUV/JPEG Support video format: 8/10/12bit Deep color Support audio format: L-PCM Support AWG26 HDMI standard cable: input up to 15 meters Support most acquisition software, such as VLC / OBS / Amcap, etc Support Windows / Android / MacOS Conform to USB Video and UVC standard Conform to USB Audio UAC standard Max working current: 0.4A/5V DC Dimension (L x W x H): 64x28x13 (mm) Without external power supply, compact and portable. Note: Computer hardware configuration requirements CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above Run memory: 4G RAM Package include: Audio Video Capture Cards 1PCS User Manual 1PCS
